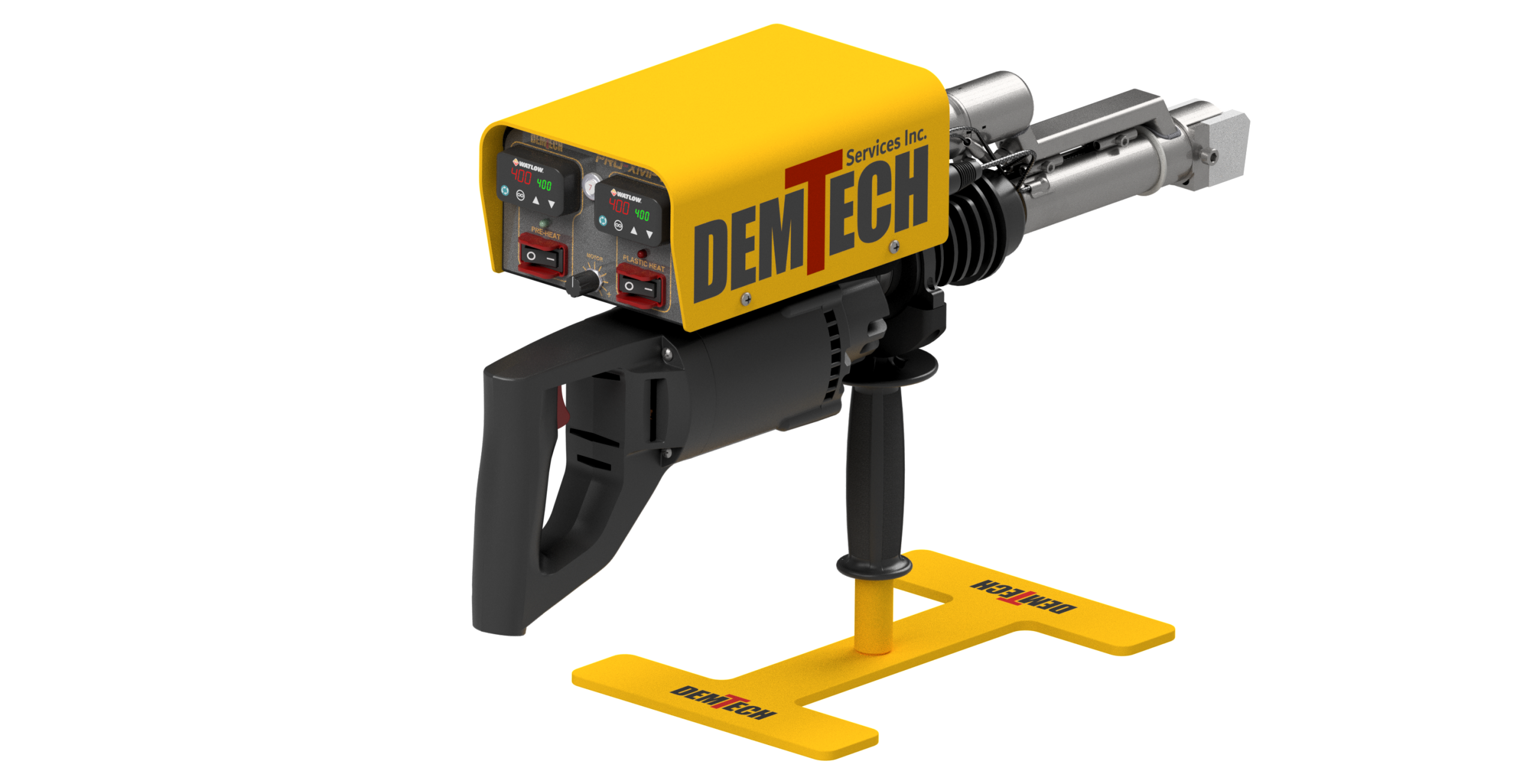

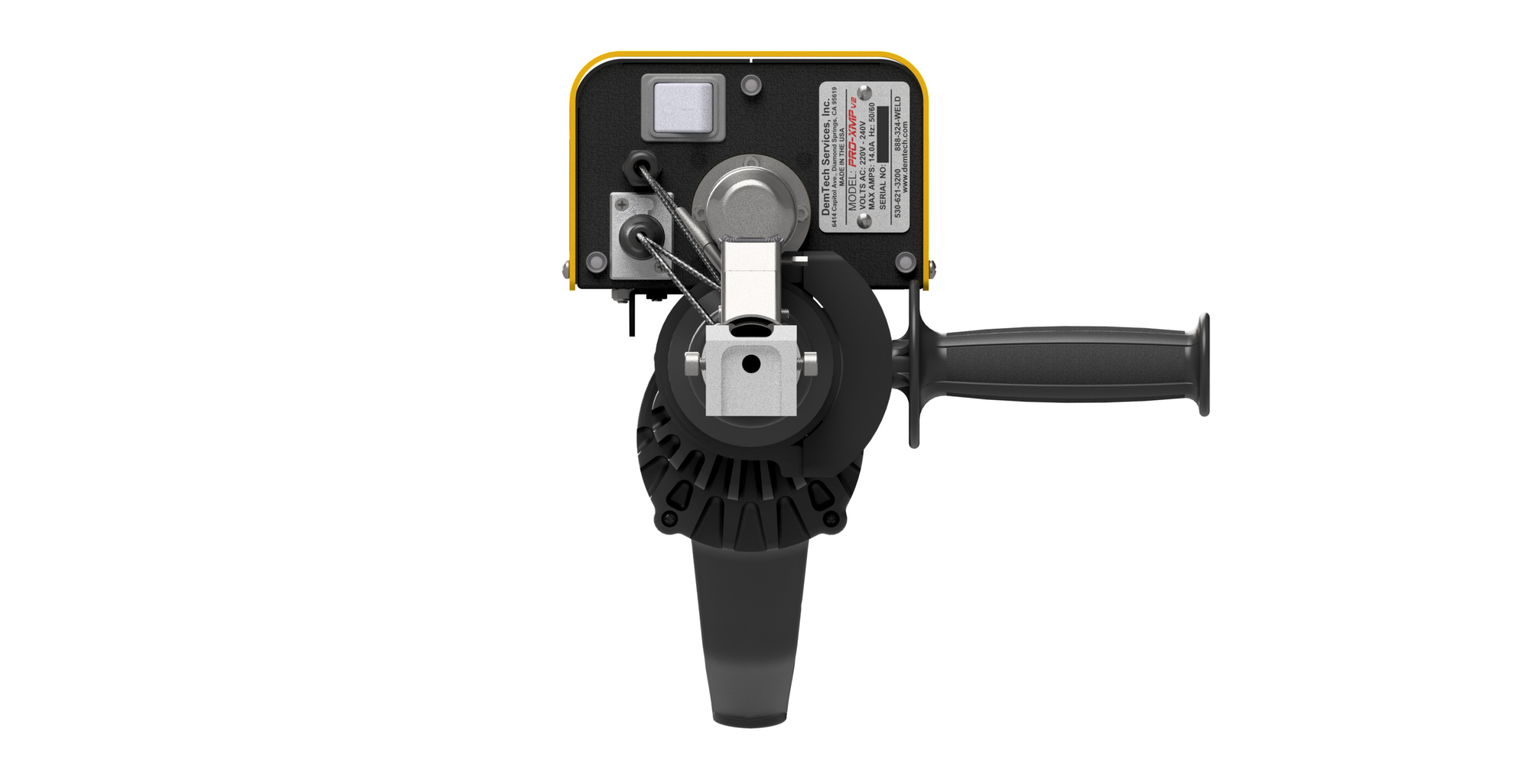

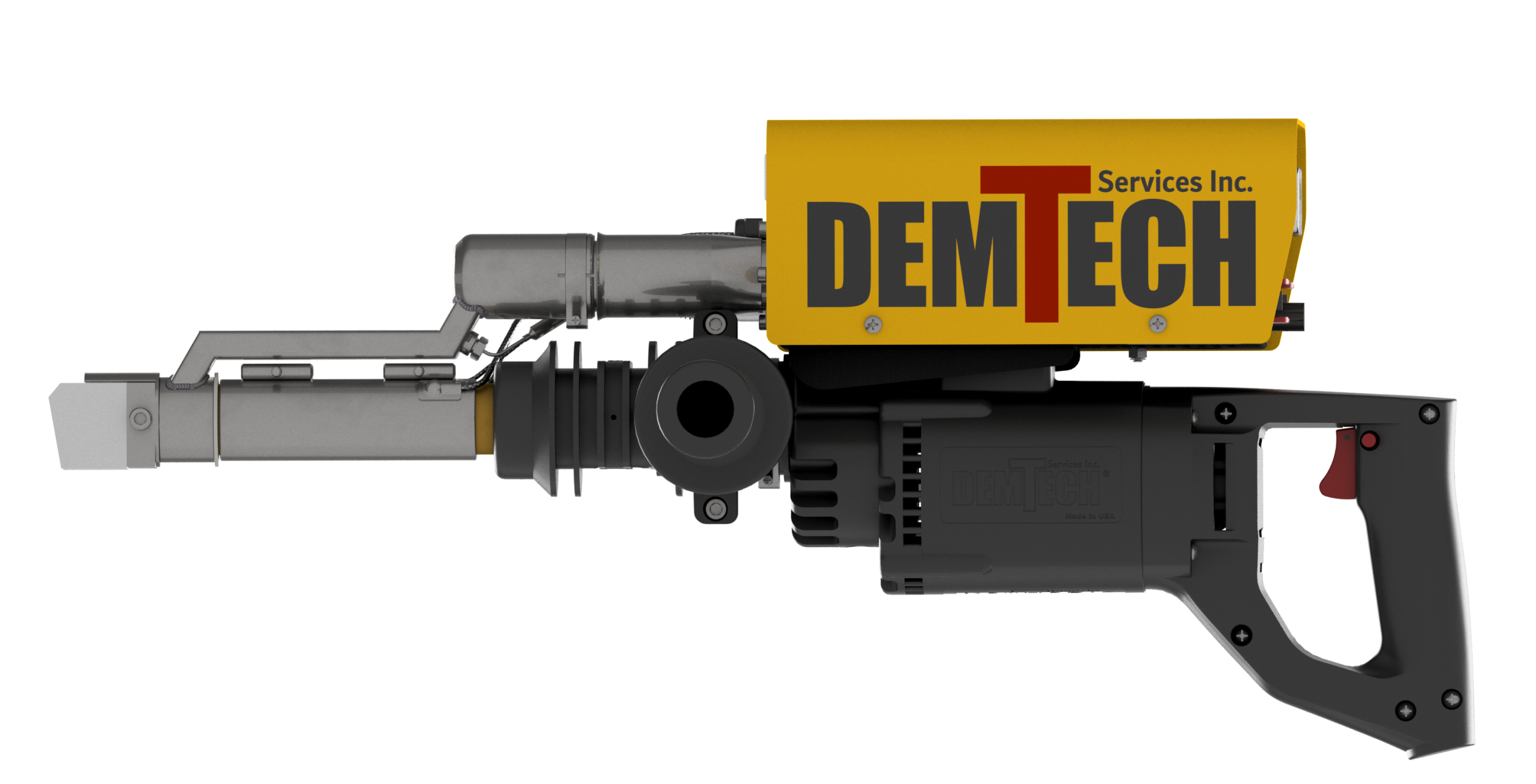

Pro-XMPv2 Extrusion Welder
Medium output extrusion welder for production welding of geomembranes and rigid thermoplastics.
The PRO-XMPv2 Extrusion Welder, manufactured by DEMTECH Services, Inc., is the latest in a long line of high-quality extrusion welders for detail and medium production welding of thermoplastic liners, pipe, and rigid sheet stock as well as many other plastic welding applications. Drawing from many years of experience in the plastic welding industry, we’ve designed features and functions into its design to satisfy the needs of the most demanding welding technicians.
- The drive motor has been upgraded to a powerful DemTech brand drive motor, resulting in a 20% increase in plastic output.
- Reliable, easy to set Watlow temperature controllers
- Easy to use heater on/off controls
- Bright LED headlights light-up work area in front of welding shoe
- Electronic "cold start" protection prevents starting of motor before minimum operating temperature is reached
- Demtech's exclusive integral pre-heat air blower heating system.
- Small diameter but long barrel/pre-heat design for easy welding access to tight spaces
- Ergonomic handle adjusts easily with a twist to different positions for right-handed or left-handed operation
- Now comes with its own two-piece stand to keep equipment off liner.
- Non-twisting rod feed design makes it easier to manage welding rod. Works with 4 or 5mm rod
- Welding shoes are available in Demtech's pre-machined design
- Welding shoe rotates 360° to weld in any direction
- Lightweight... high output... Reliable... Affordable...
- Made in the USA and built to Last
Model Number: XM-83000
Welder Weight: 19.5lbs (8.85 kg)
Shipping Weight: 53.5lbs (24.3 kg)
Dimensions: 25 x 6 x 11" (63.5 x 15.2 x 28cm)
Rod Size: 5mm Preferred
Output with 4mm: 4.5lbs (2 kg)
Output with 5mm: 7lbs (3.2 kg)
Material Range: HDPE LLDPE PVDF PVC PP PE
Welding Range: 20mil -2" (.5mm - 50mm)
Voltage: 230VAC, single phase
Consumption: 3000W, 13A
Packaging: Sturdy molded case w/ foam insert
